Common Shapes & Sizes

Index

01 02 03 04 05 06 07

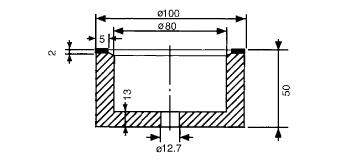

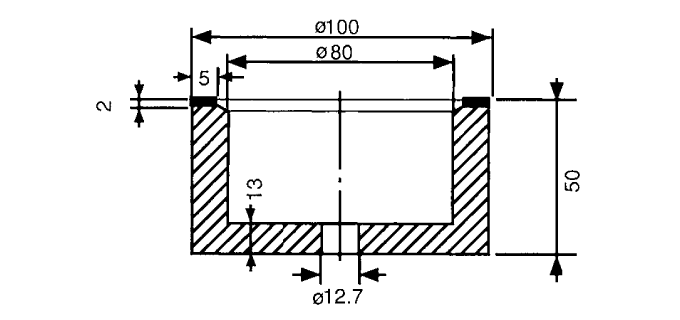

C3001HIRUMA　SS　Sculpture Bite
Shape	6A2	Type	Dry	Other
Size	100D*5W*2X*12.7H

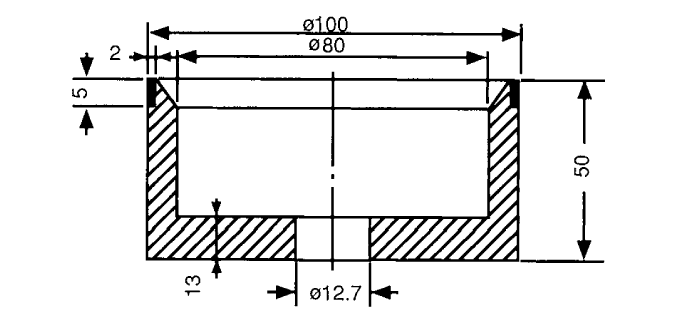

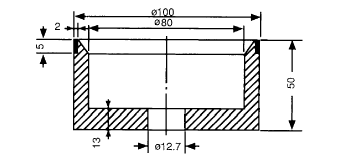

C3002HIRUMA　SS　Sculpture Bite
Shape	6A9	Type	Dry	Other
Size	100D*5U*2X*12.7H

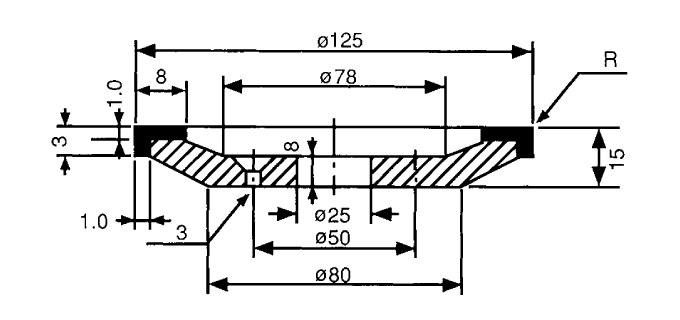

C3101FUJI DIAMOND　FG-3
Shape	12C9C	Type	Dry & Wet	Other	3 holes
Size	125D*8W*3U*1X*25H

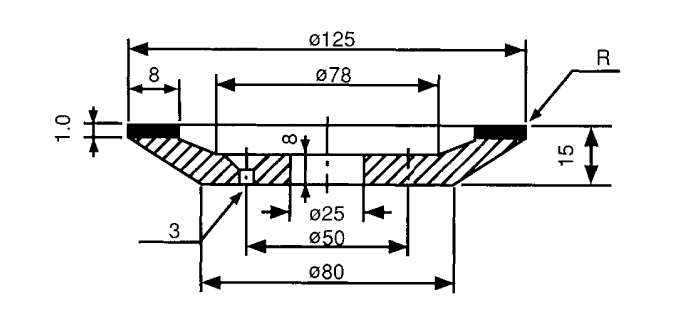

C3102FUJI DIAMOND　FG-3
Shape	12A2C	Type	Dry & Wet	Other	3 holes
Size	125D*8W*1*25H

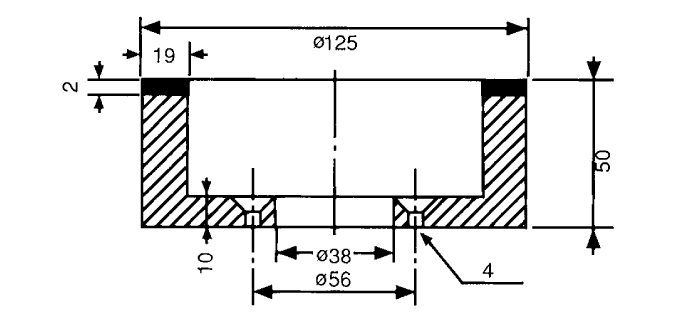

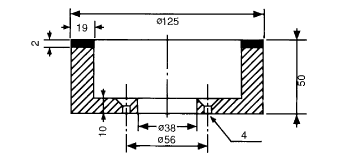

C3201FUJITA　SS　DG-25B　ドリル
Shape	6A2C	Type	Wet	Other
Size	125D*19W*2X*38H

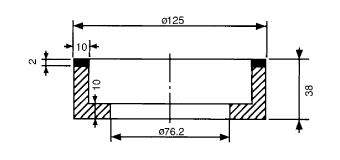

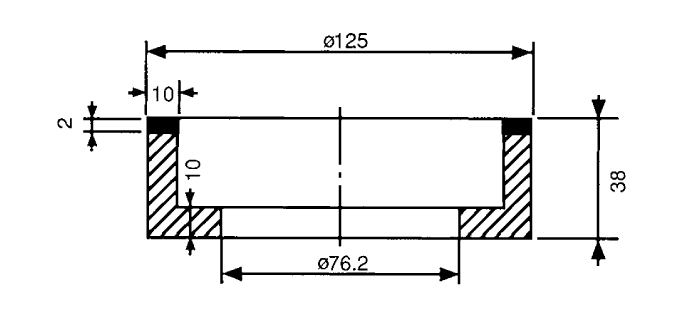

C3202FUJITA　SS　DG-07A･BX 03BX､　ドリル
Shape	6A2	Type	Wet	Other
Size	125D*10W*2X*76.2H

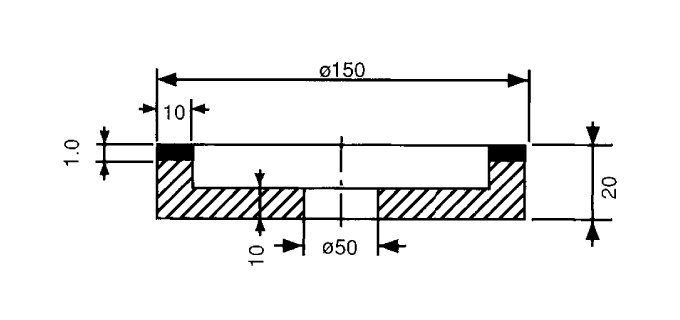

C3401HOKUSHIN　KG-CH･A1F
Shape	6A2	Type	Wet	Other
Size	150D*10W*1X*50H

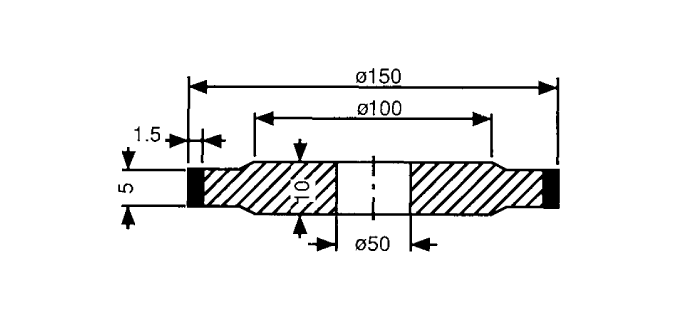

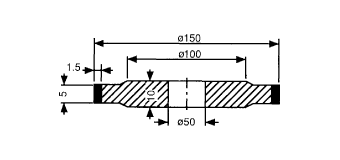

C3402HOKUSHIN　KG-CH･A3F
Shape	14A1	Type	Wet	Other
Size	150D*5U*1.5X*50H

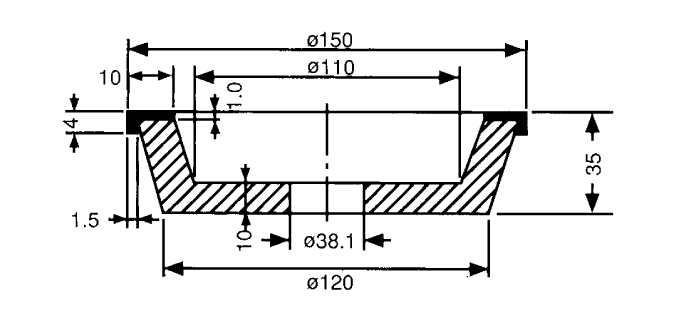

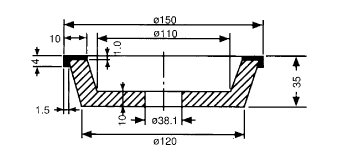

C4101HOSOI　HDG
Shape	11C9	Type		Other
Size	150D*10W*1X*4U*1.5X*38.1H

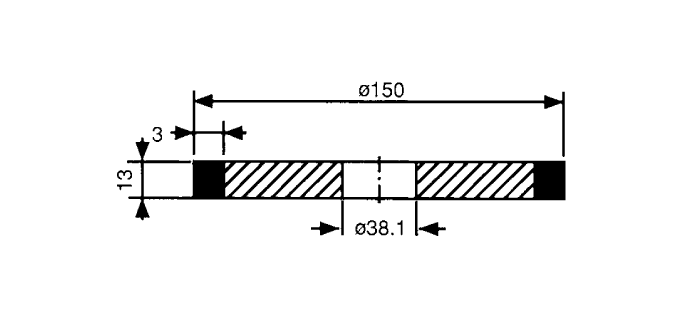

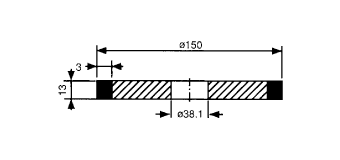

C4102HOSOI　HDG
Shape	1A1	Type		Other
Size	150D*13T*3X*38.1H

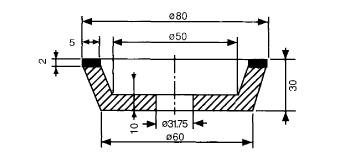

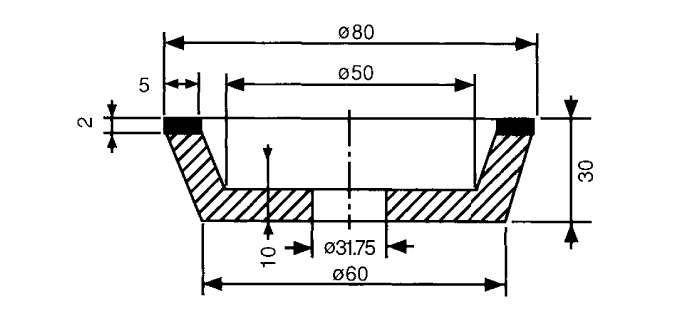

C3501MAKINO　C-40･25
Shape	11A2	Type	Dry	Other
Size	80D*5W*2X*31.75H

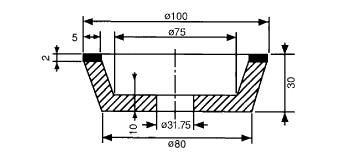

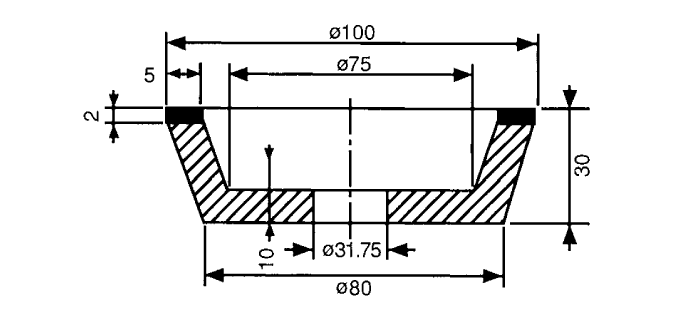

C3502MAKINO　C-40･25
Shape	11A2	Type	Dry	Other
Size	100D*5W*2X*31.75H

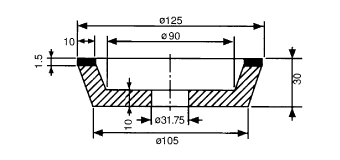

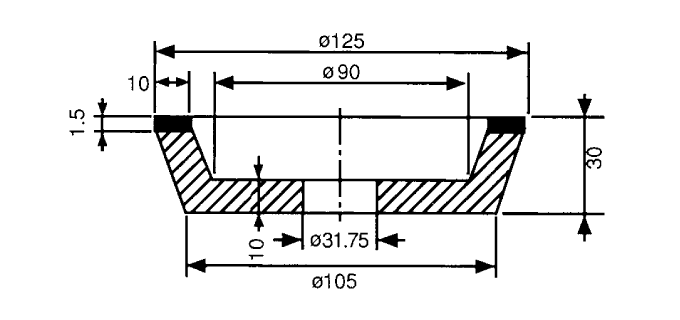

C3503MAKINO　C-40･25
Shape	11A2	Type	Dry	Other
Size	125D*10W*1.5X*31.75H

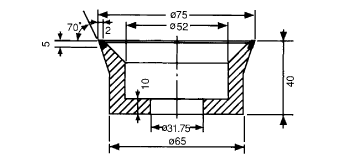

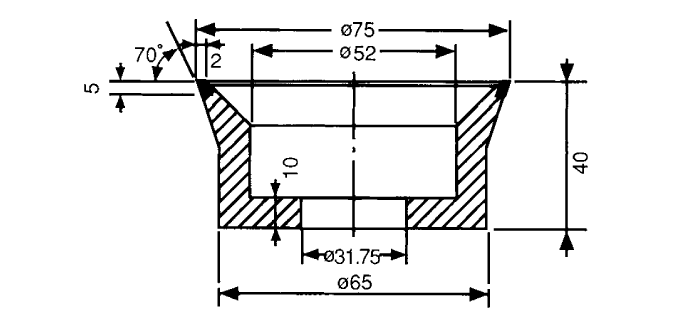

C3504MAKINO　C-40･25
Shape	6V9	Type	Dry & Wet	Other
Size	75D*5U*2X*70°*31.75H

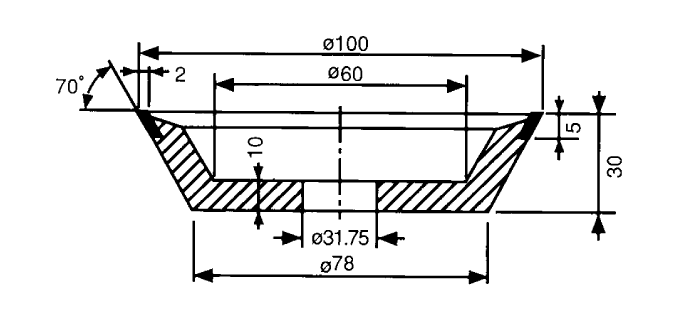

C3505MAKINO　C-40･25
Shape	11V9	Type	Dry	Other
Size	100D*5U*2X*70°*31.75H

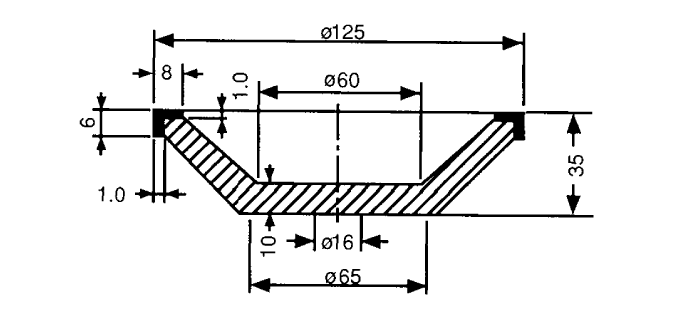

C3601MATSUZAWA　MZ-3.8
Shape	11C9	Type	Dry	Other
Size	125D*8W*6U*1X*16H
