HOME > Common Shapes & Sizes
Common Shapes & Sizes

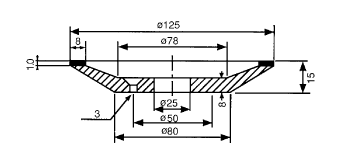

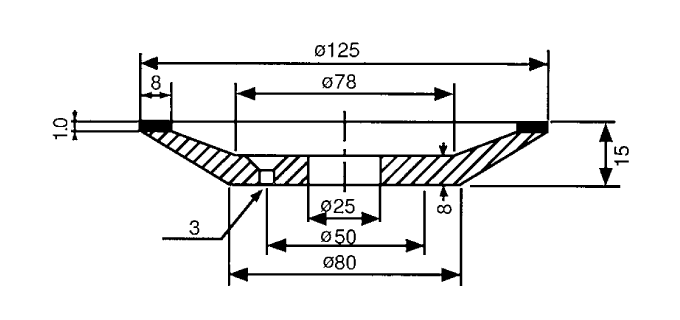

| C0101ASAHI DiaAceSDG-3S | |||||
| Shape | 12A2C | Type | Dry&Wet | Other | 3 holes |
|---|---|---|---|---|---|
| Size | 125D*8W*1X*25H | ||||
 |
|||||

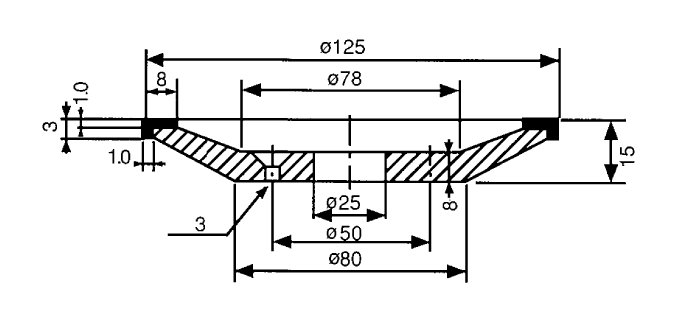

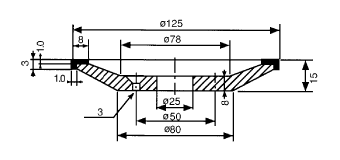

| C0102ASAHI DiaAceSDG-3 | |||||
| Shape | 12C9C | Type | Dry&Wet | Other | 3 holes |
|---|---|---|---|---|---|
| Size | 125D*8W*3U*1X*25H | ||||
 |
|||||

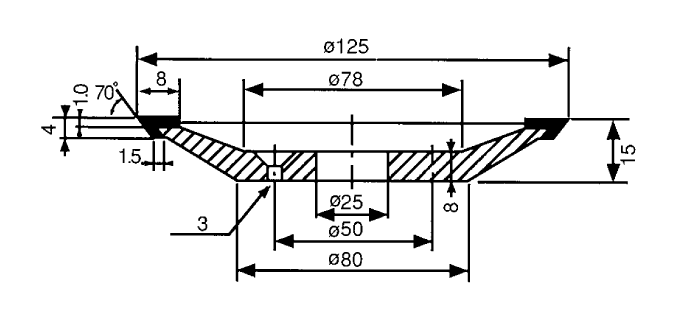

| C0103ASAHI DiaAceSDG-3 | |||||
| Shape | 12AV9C | Type | Dry&Wet | Other | 3 holes |
|---|---|---|---|---|---|
| Size | 125D*8W*1X*4U*1.5X*70°*25H | ||||
 |
|||||

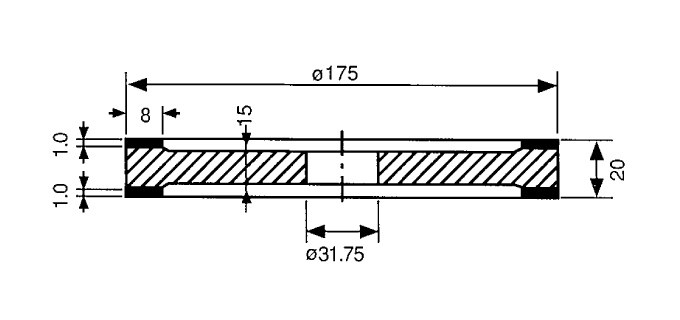

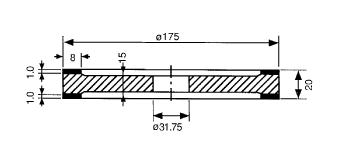

| C0104ASAHI Dia Super Cut | |||||
| Shape | 9A3 | Type | Wet | Other | 20T*15E |
|---|---|---|---|---|---|
| Size | 175D*8W*1X*31.75H | ||||
 |
|||||

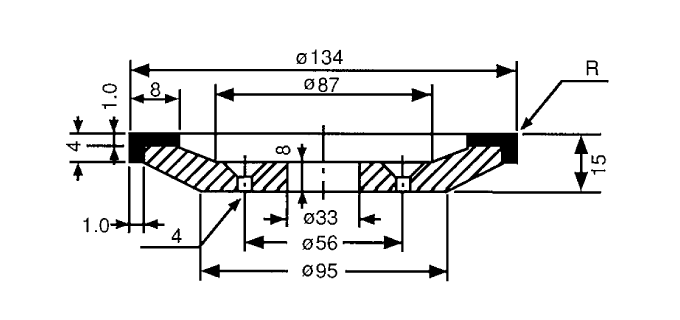

| C0201Ito DiaPet DP-1 | |||||
| Shape | 12C9C | Type | Dry | Other | 4 holes |
|---|---|---|---|---|---|
| Size | 134D*8W*4U*1X*33H | ||||
 |
|||||

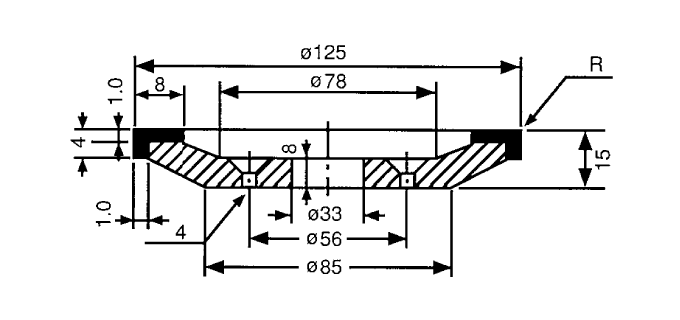

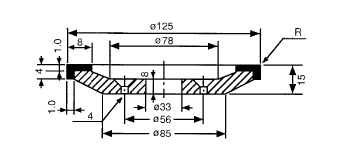

| C0202Ito DiaPet DP-2N･2NS | |||||
| Shape | 12C9C | Type | Dry | Other | 4 holes |
|---|---|---|---|---|---|
| Size | 125D*8W*4U*1X*33H | ||||
 |
|||||

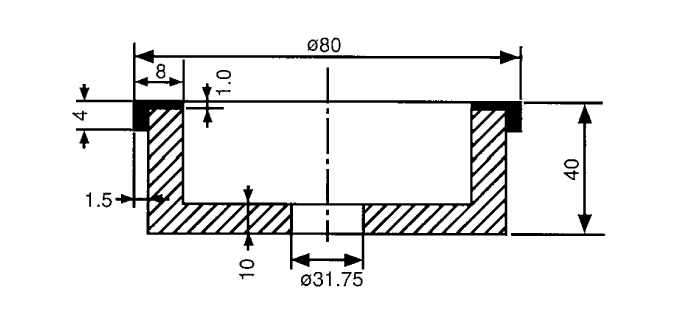

| C0203Ito DiaPet DP-3 | |||||
| Shape | 6C9 | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 80D*8W*1X*4U*1.5X*31.75H | ||||
 |
|||||

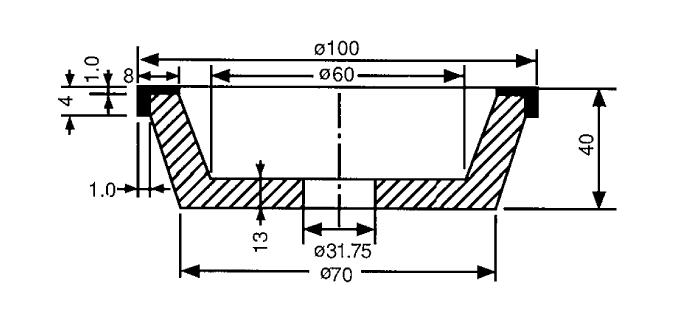

| C0204Ito DiaPet DP-3N | |||||
| Shape | 11C9 | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 100D*8W*4U*1X*31.75H | ||||
 |
|||||

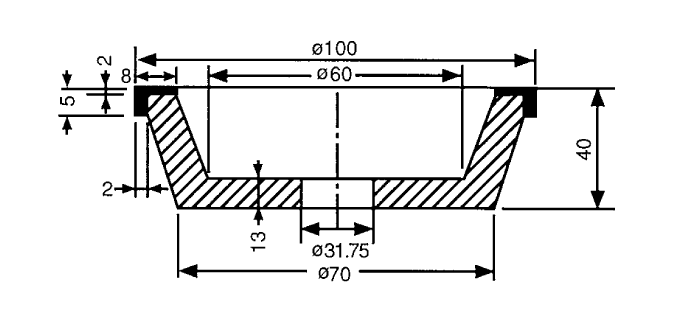

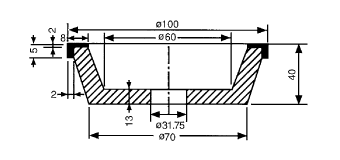

| C0205Ito DiaPet DP-520･620 | |||||
| Shape | 11C9 | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 100D*8W*5U*2X*31.75H | ||||
 |
|||||

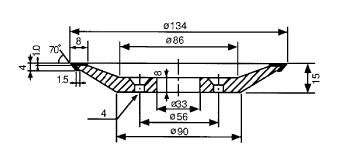

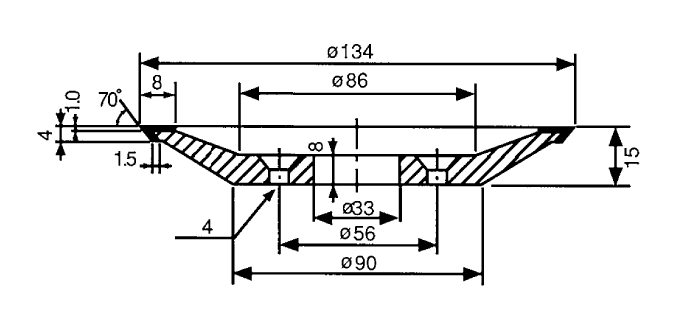

| C0206Ito DiaPet DP-1 | |||||
| Shape | 12AV9C | Type | Dry | Other | 4 holes |
|---|---|---|---|---|---|
| Size | 134D*8W*1X*4U*1.5X*70°*33H | ||||
 |
|||||

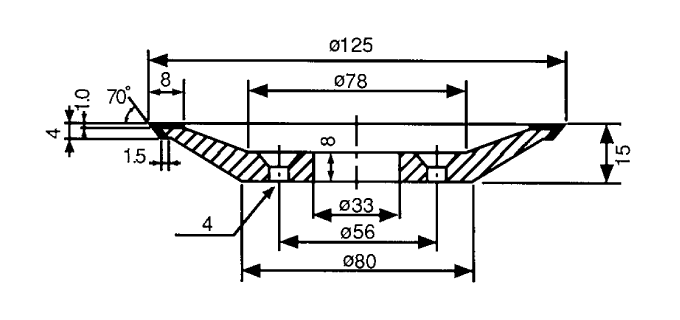

| C0207Ito DiaPet DP-2N･2NS | |||||
| Shape | 12AV9C | Type | Dry | Other | 4 holes |
|---|---|---|---|---|---|
| Size | 125D*8W*1X*4U*1.5X*70°*33H | ||||
 |
|||||

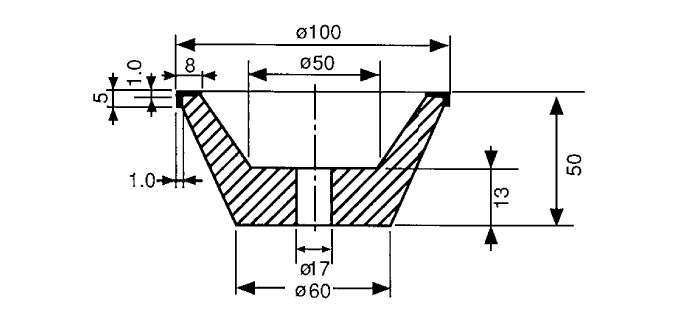

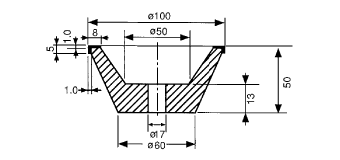

| C0301IIDA AUROR GT-200A･U | |||||
| Shape | 11C9 | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 100D*8W*5U*1X*17H | ||||
 |
|||||

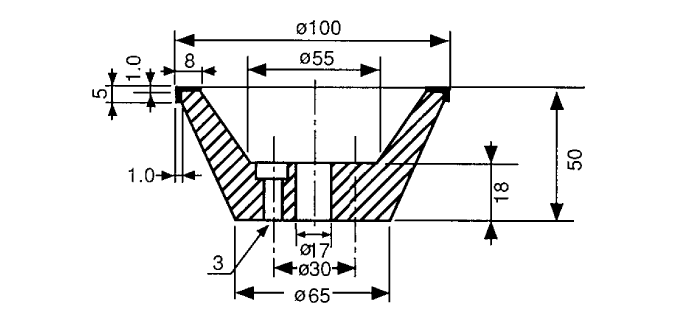

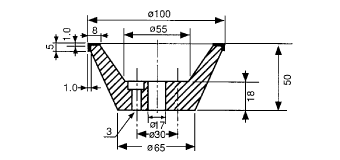

| C0302IIDA AUROR GT-200FR/GT-300FL | |||||
| Shape | 11C9B | Type | Dry | Other | 3 holes |
|---|---|---|---|---|---|
| Size | 100D*8W*5U*1X*17H | ||||
 |
|||||

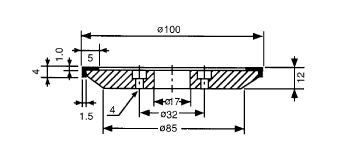

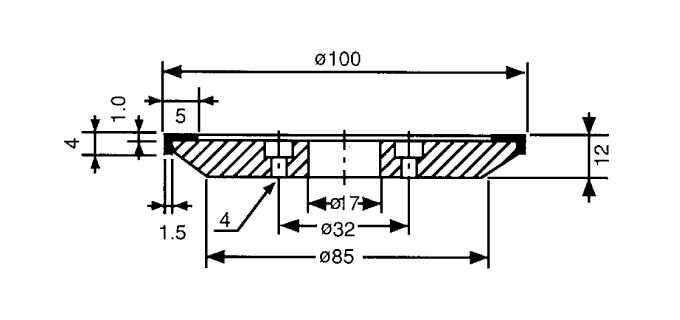

| C0303IIDA AUROR G-3 | |||||
| Shape | 4C9B | Type | Dry | Other | 4 holes |
|---|---|---|---|---|---|
| Size | 100D*5W*1X*4U*1.5X*17H | ||||
 |
|||||

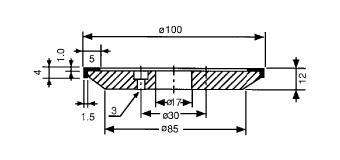

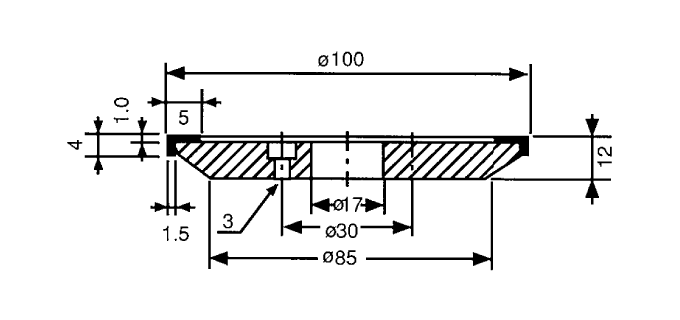

| C0304IIDA AUROR G-3F | |||||
| Shape | 4C9B | Type | Dry | Other | 3 holes |
|---|---|---|---|---|---|
| Size | 100D*5W*1X*4U*1.5X*17H | ||||
 |
|||||

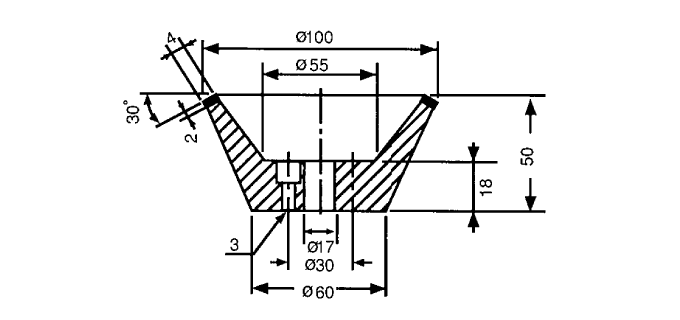

| C0305IIDA AUROR GT-200FC | |||||
| Shape | 11V5B | Type | Dry | Other | End mill |
|---|---|---|---|---|---|
| Size | 100D*4W*2X*30°*17H | ||||
 |
|||||
