Thin Groove Processing Wheels

Index

Profiles　　Internal Grinding

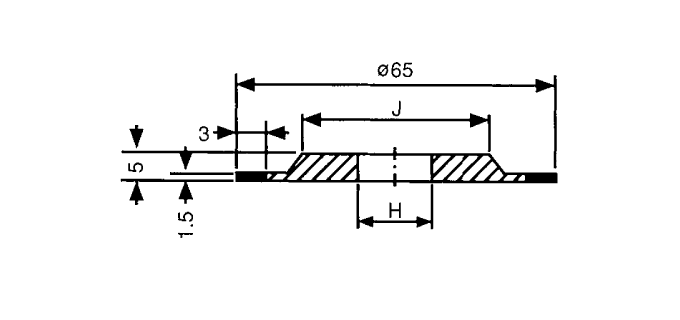

φ65Profile Okamoto Amada Waida
Shape	3A1	Type		Other	24H
Size	65D*1.5U*3X*22.23H

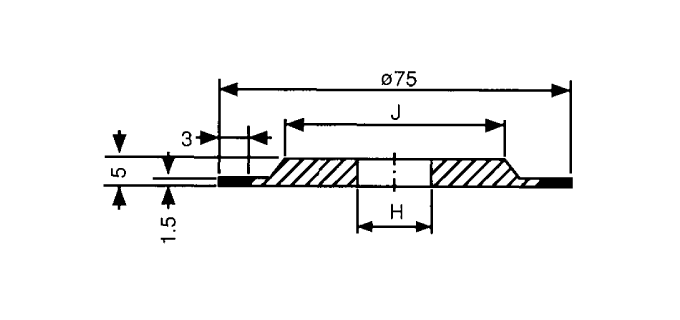

φ75Profile Okamoto Amada Waida
Shape	3A1	Type		Other	24H
Size	75D*1.5U*3X*22.23H

φ150Profile Okamoto Amada Waida
Shape	3A1	Type	Dry	Other
Size	150D*0.5U*3X*32H 150D*0.5U*3X*31.75H

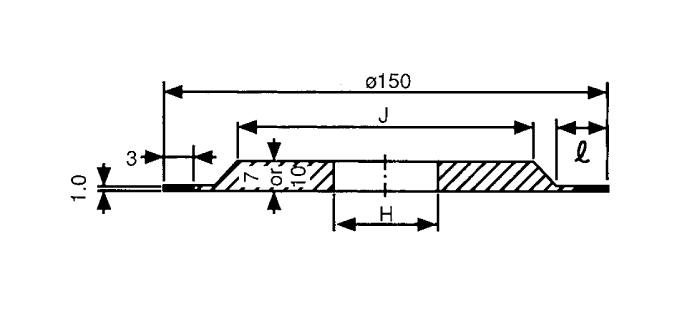

φ150Profile Okamoto Amada Waida
Shape	3A1	Type		Other	Dry
Size	150D*1.0U*3X*32H 150D*1.0U*3X*31.75H

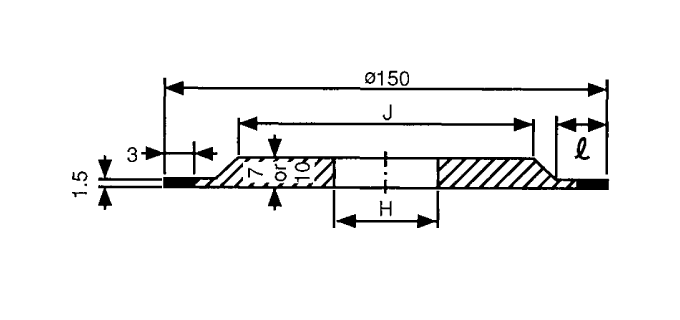

φ150Profile Okamoto Amada Waida
Shape	3A1	Type		Other	Dry
Size	150D*1.5U*3X*32H 150D*1.5U*3X*31.75H

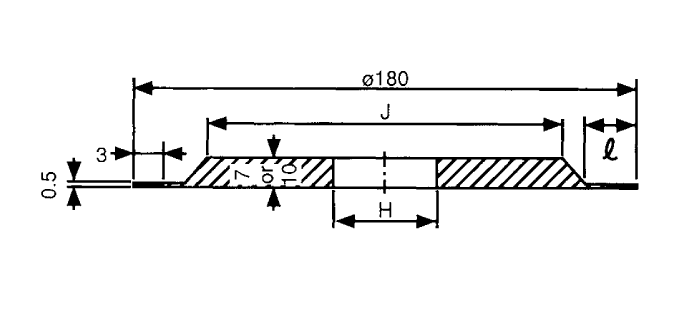

φ180Profile Okamoto Amada Waida
Shape	3A1	Type		Other
Size	180D*0.5U*3X*32H 180D*0.5U*3X*31.75H

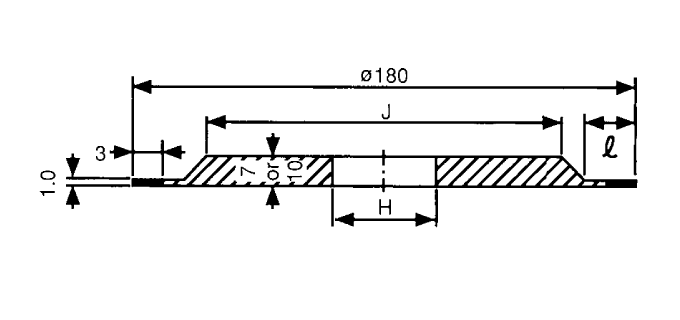

φ180Profile Okamoto Amada Waida
Shape	3A1	Type		Other
Size	180D*1.0U*3X*32H 180D*1.0U*3X*31.75H

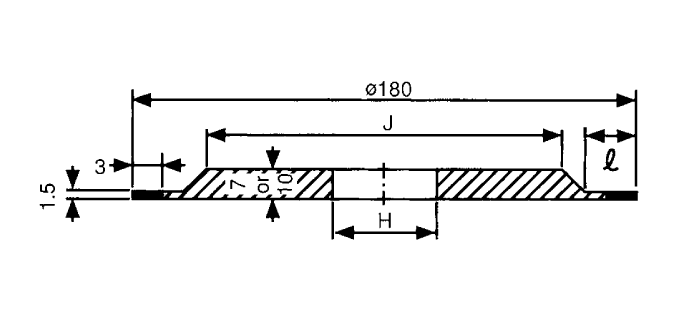

φ180Profile Okamoto Amada Waida
Shape	3A1	Type		Other
Size	180D*1.5U*3X*32H 180D*1.5U*3X*31.75H

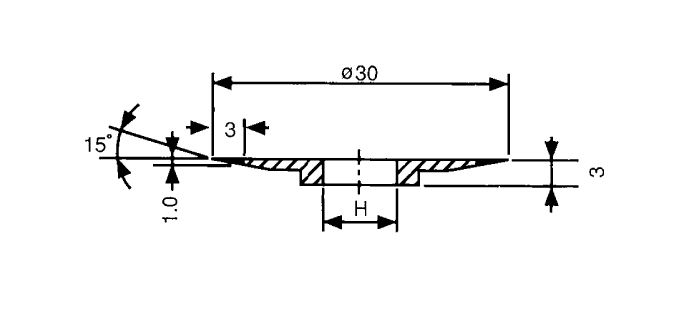

φ30Profile Okamoto Amada Waida
Shape	1B9	Type		Other
Size	30D*3W*1X*15°*4.77H/8H

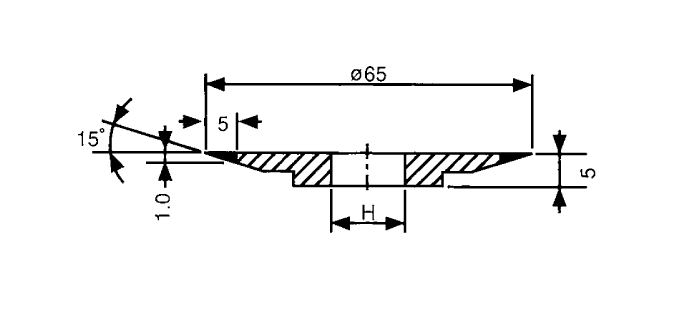

φ65Profile Okamoto Amada Waida
Shape	1B9	Type		Other
Size	65D*5W*1X*15°*24H/22.23H

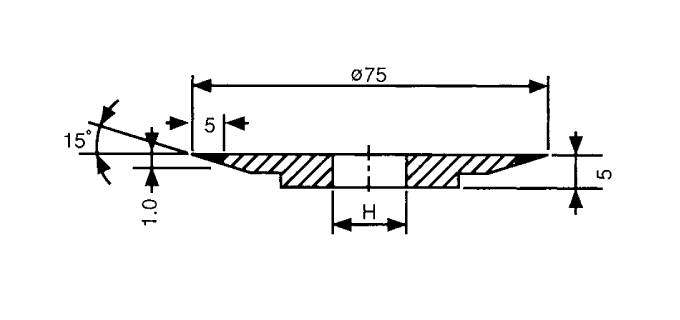

φ75Profile Okamoto Amada Waida
Shape	1B9	Type		Other
Size	75D*5W*1X*15°*22.23H/24H

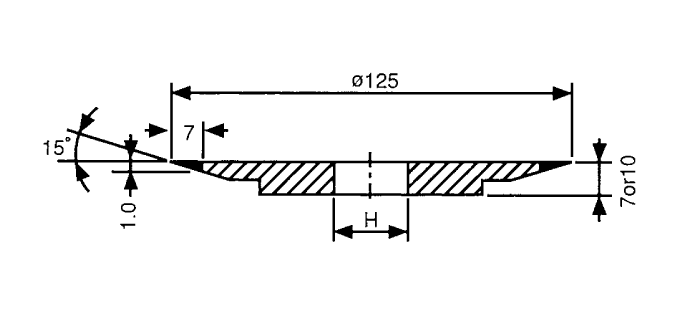

φ125Profile Okamoto Amada Waida
Shape	1B9	Type		Other
Size	125*7W*1X*15°*32H 125*7W*1X*15°*31.75H

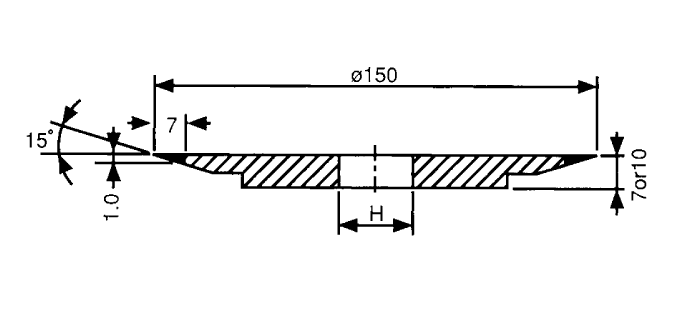

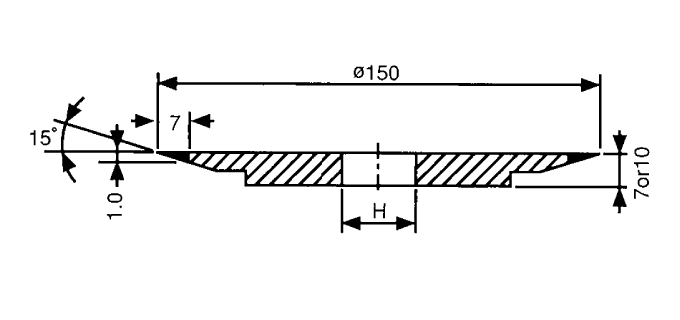

φ150Profile Okamoto Amada Waida
Shape	1B9	Type		Other	Dry
Size	150D*7W*1X*15°*32H 150D*7W*1X*15°*31.75H

φ150Profile Okamoto Amada Waida
Shape	1B9	Type		Other	Dry
Size	150D*7W*1X*15°*32H 150D*7W*1X*15°*31.75H

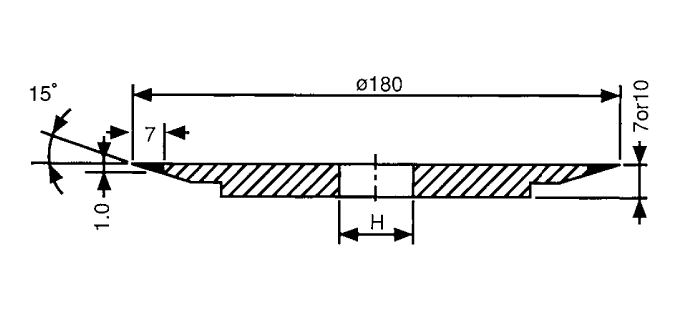

φ180Profile Okamoto Amada Waida
Shape	1B9	Type		Other	Dry
Size	180D*7W*1X*15°*32H 180D*7W*1X*15°*31.75H

φ180Profile Okamoto Amada Waida
Shape	1B9	Type		Other	Dry
Size	180D*7W*1X*15°*32H 180D*7W*1X*15°*31.75H
