Common Shapes & Sizes

Index

01 02 03 04 05 06 07

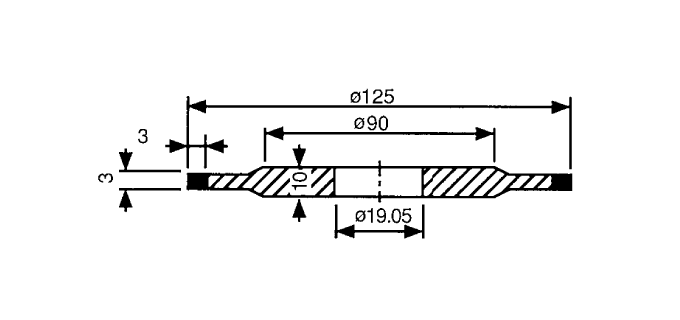

C1401COPAL　CG-140.150
Shape	14A1	Type	Wet	Other
Size	125D*3U*3X*19.05H

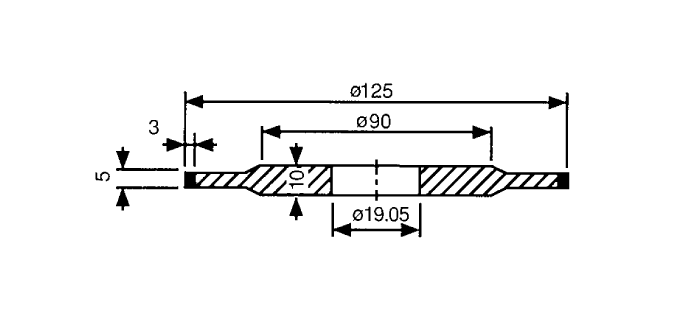

C1402COPAL　CG-140.150
Shape	14A1	Type	Wet	Other
Size	125D*5U*3X*19.05H

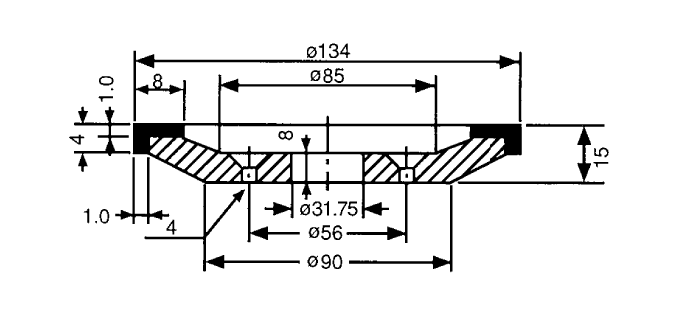

C1501Gomi Fujimi　G-71
Shape	12C9C	Type	Dry	Other	4 holes
Size	134D*8W*4U*1X*31.75H

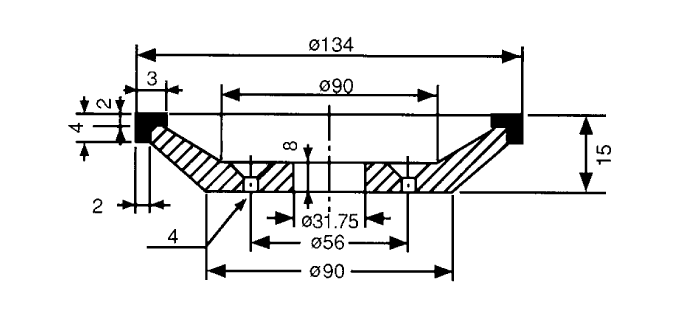

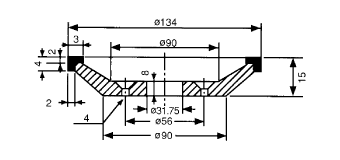

C1502Gomi Fujimi　G-71
Shape	12C9C	Type	Dry	Other	4 holes
Size	134D*3W*4U*2X*31.75H

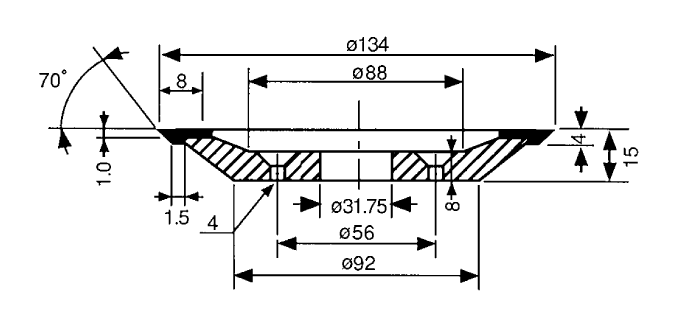

C1503Gomi Fujimi　G-71
Shape	12AV9C	Type	Dry	Other	4 holes
Size	134D*8W*1X*4U*1.5X*70°*31.75H

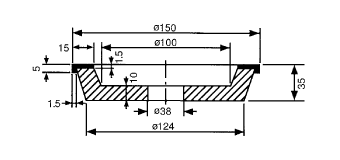

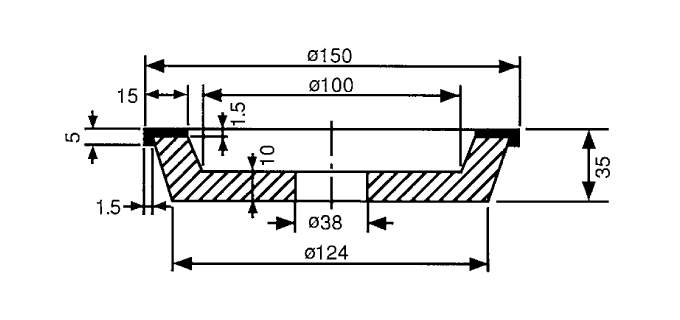

C1601Koide　MUG-150･500
Shape	11C9	Type	Wet	Other
Size	150D*15W*5U*1.5X*38H

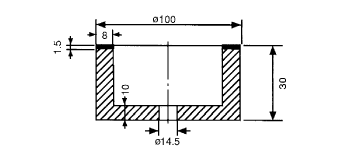

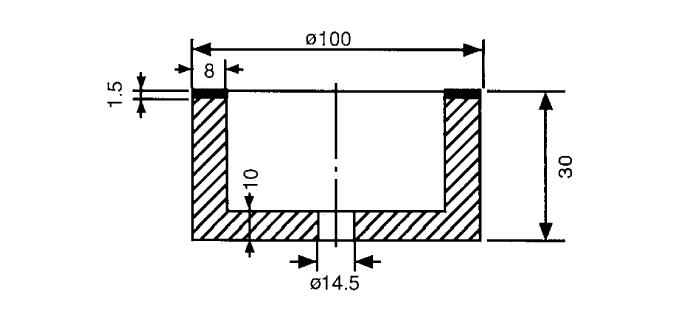

C1701Sakasaki Tekkou　SG-5
Shape	6A2	Type	Dry	Other
Size	100D*8W*1.5X*14.5H

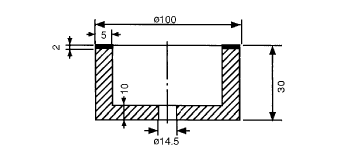

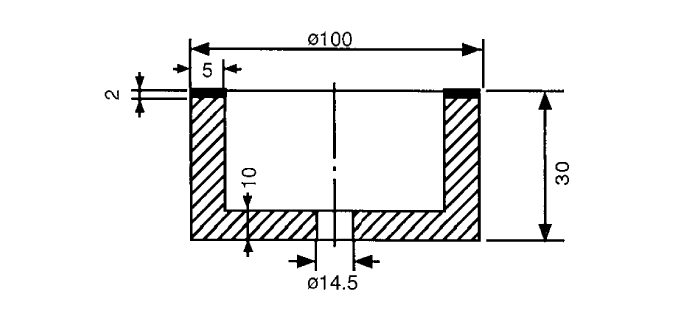

C1702Sakasaki Tekkou　SG-5･6
Shape	6A2	Type	Dry	Other
Size	100D*5W*2X*14.5H

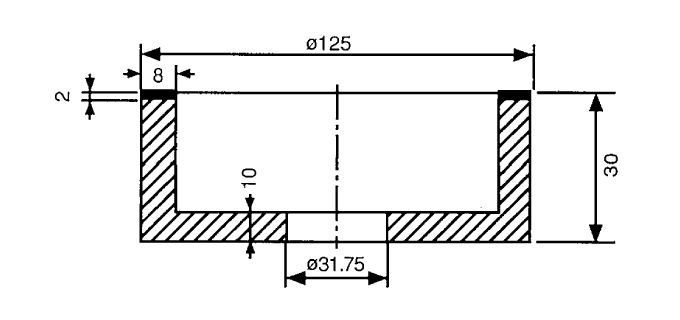

C1703Sakasaki Tekkou　SG-V10
Shape	6A2	Type	Dry	Other
Size	125D*8W*2X*31.75H

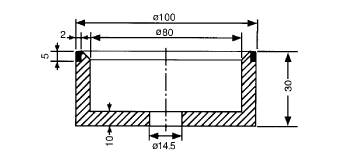

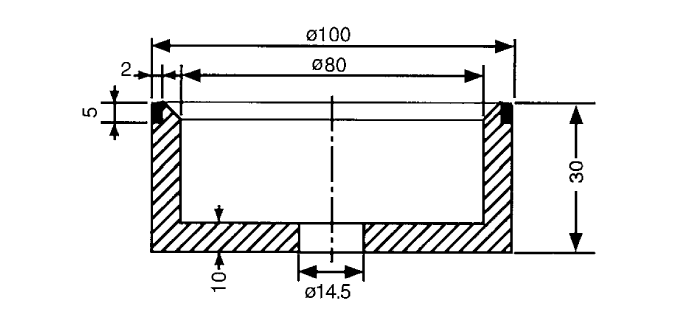

C1704Sakasaki Tekkou　SG-5･6
Shape	6A9	Type	Dry	Other
Size	100D*5U*2X*14.5H

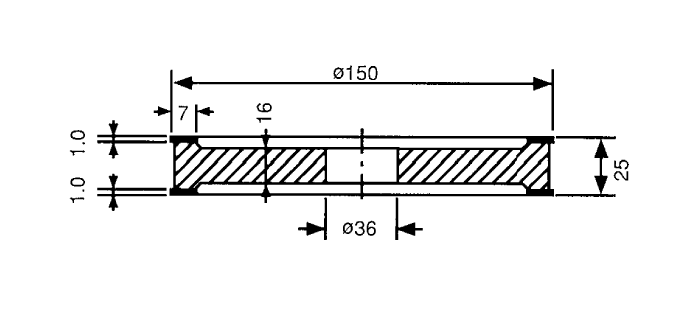

C1801CITIZEN　CG-7
Shape	9A3	Type	Wet	Other
Size	150D*7W*1X*36H

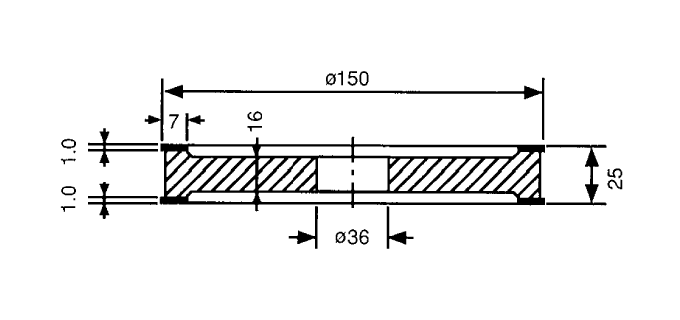

C1901STAR MICRONICS　BG-1
Shape	9A3	Type	Wet	Other	25T*16E
Size	150D*7W*1X*36H

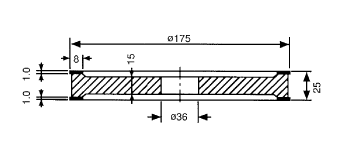

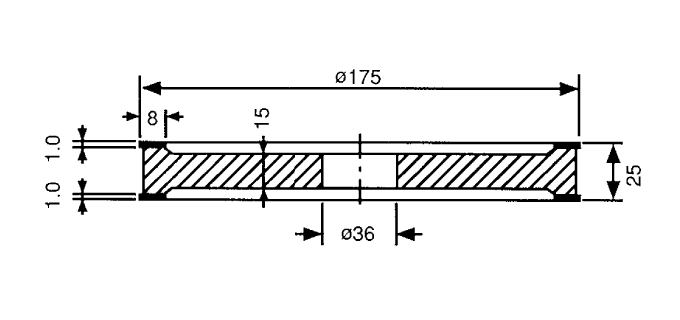

C1902STAR MICRONICS　BG-2
Shape	9A3	Type	Wet	Other	25T*15E
Size	175D*8W*1X*36H

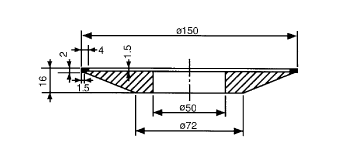

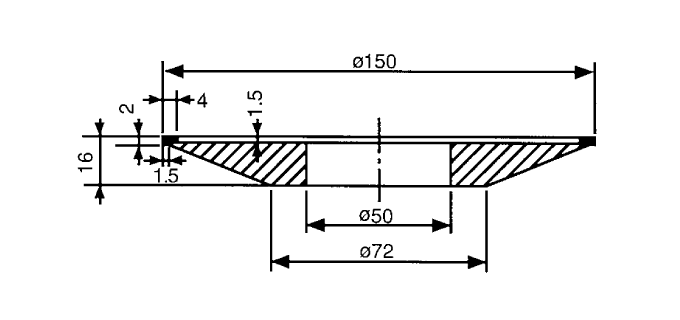

C2001SEIWA　gear hobbing machines
Shape	4C9	Type	Wet	Other
Size	150D*4W*2U*1.5X*50H

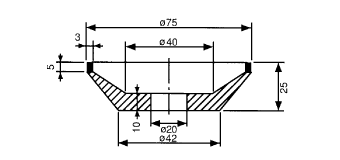

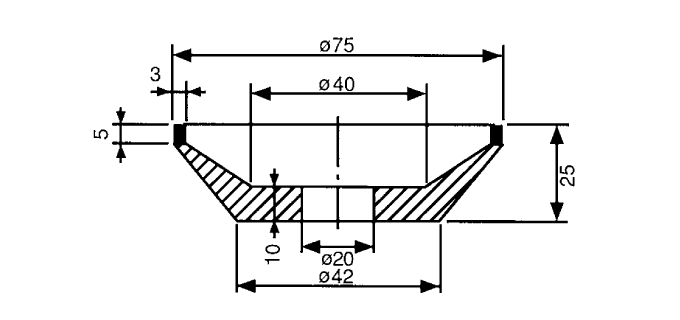

C2201TSUGAMI　CTG-4
Shape	11A2	Type	Dry	Other
Size	75D*3W*5X*20H

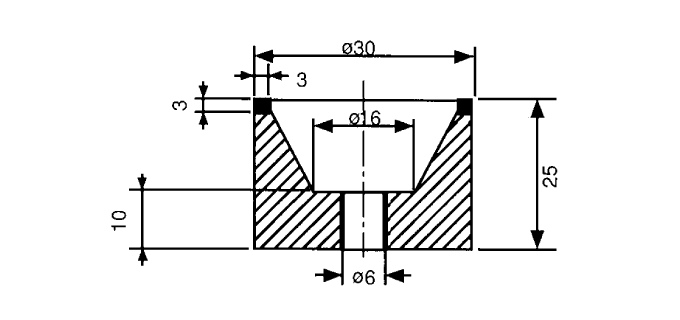

C2202TSUGAMI　CTG-4
Shape	6A2	Type		Other
Size	30D*3W*3X*6H
