HOME > Common Shapes & Sizes
Common Shapes & Sizes

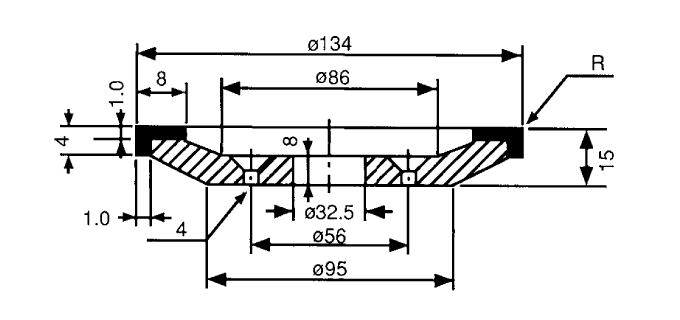

| C2301TOKYO SEIMITSU Todia HMB-32 | |||||
| Shape | 12C9C | Type | Dry | Other | 4 holes |
|---|---|---|---|---|---|
| Size | 134D*8W*4U*1X*32.5H | ||||
 |
|||||

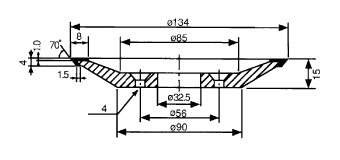

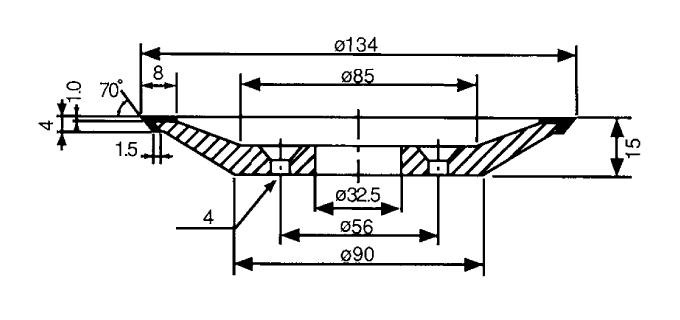

| C2302TOKYO SEIMITSU Todia HMB-32 | |||||
| Shape | 12AV9C | Type | Dry | Other | 4 holes |
|---|---|---|---|---|---|
| Size | 134D*8W*1X*4U*1.5X*70°*32.5H | ||||
 |
|||||

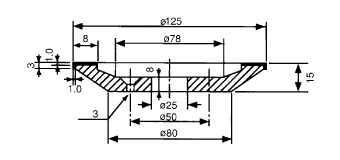

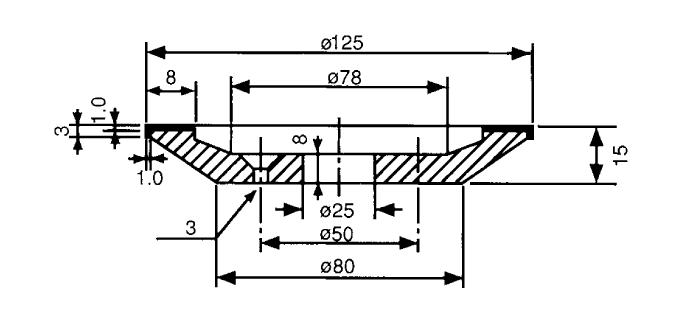

| C2401TOSHIBA Tungaloy TFG-300S | |||||
| Shape | 12C9C | Type | Dry & Wet | Other | 3 holes |
|---|---|---|---|---|---|
| Size | 125D*8W*3U*1X*25H | ||||
 |
|||||

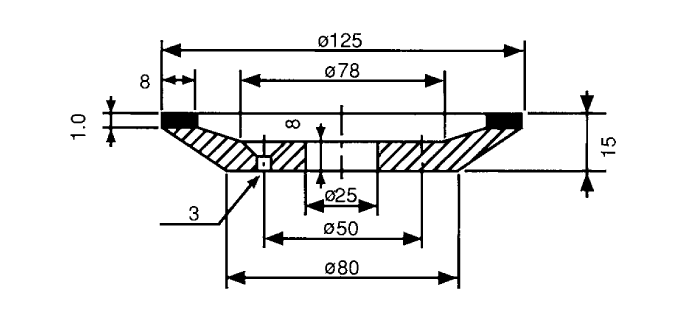

| C2402TOSHIBA Tungaloy TFG-300A | |||||
| Shape | 12A2C | Type | Dry & Wet | Other | 3 holes |
|---|---|---|---|---|---|
| Size | 125D*8W*1X*25H | ||||
 |
|||||

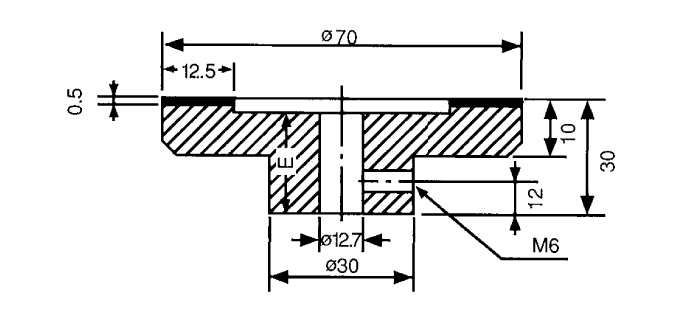

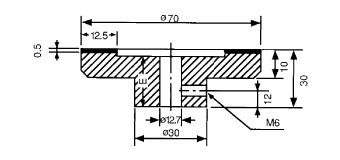

| C2403TOSHIBA Tungaloy スクレッパー | |||||
| Shape | 3A2T | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 70D*12.5W*0.5X*12.7H | ||||
 |
|||||

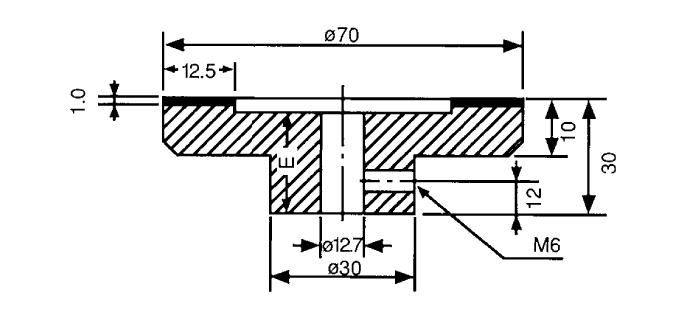

| C2404TOSHIBA Tungaloy Scraper | |||||
| Shape | 3A2T | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 70D*12.5W*1X*12.7H | ||||
 |
|||||

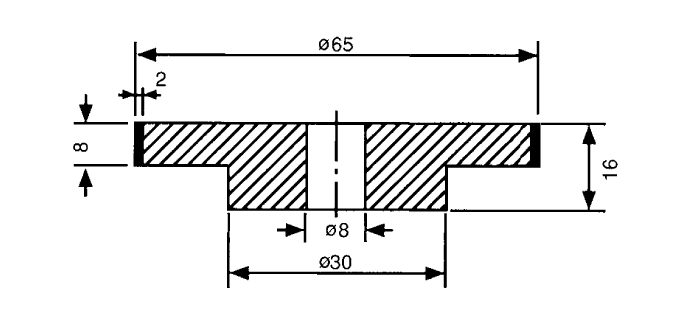

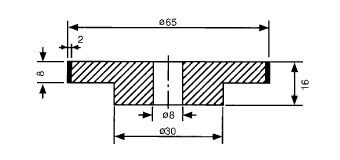

| C2601National Baby DG | |||||
| Shape | 3A1 | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 65D*8U*2X*8H | ||||
 |
|||||

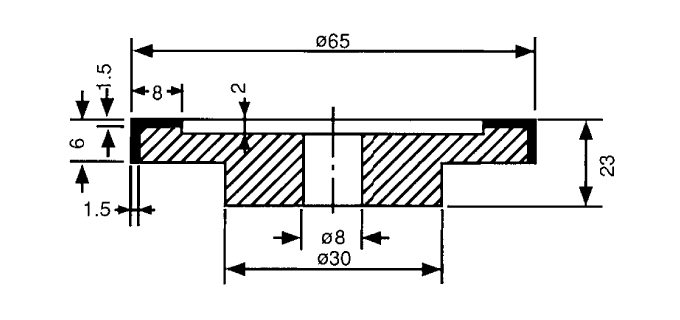

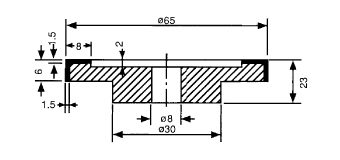

| C2602National Baby DG | |||||
| Shape | 3C9 | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 65D*8W*6U*1.5X*8H | ||||
 |
|||||

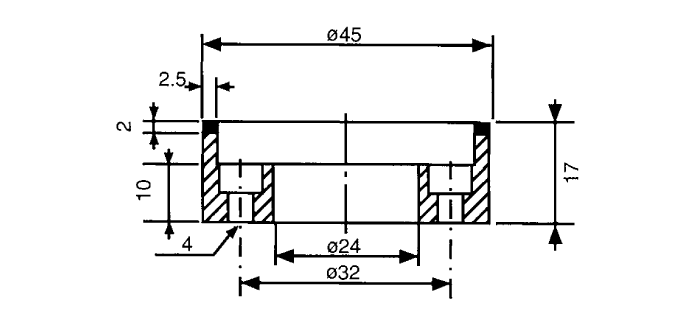

| C2701NIHON SEIMITSU EG-100 | |||||
| Shape | 6A2B | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 45D*2.5W*2X*24H | ||||
 |
|||||

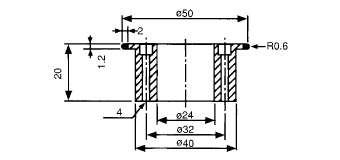

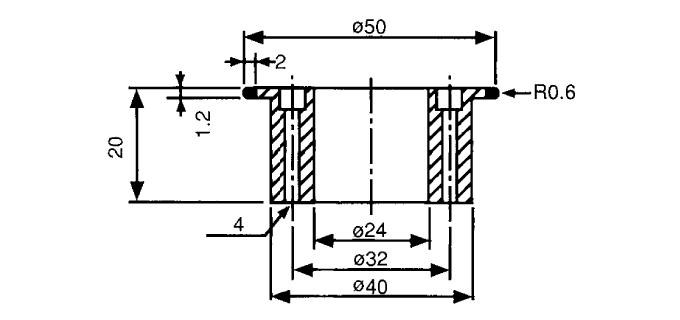

| C2702NIHON SEIMITSU EG-100 | |||||
| Shape | 3F1B | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 50D*1.2U*2X*0.6R*24H | ||||
 |
|||||

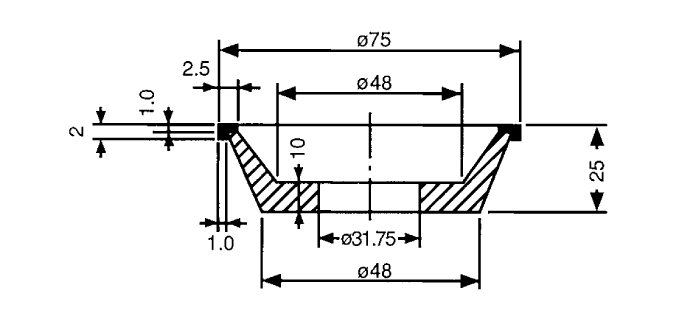

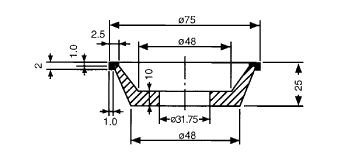

| C2703NIHON SEIMITSU EG-100 | |||||
| Shape | 11C9 | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 75D*2.5W*2U*1X*31.75H | ||||
 |
|||||

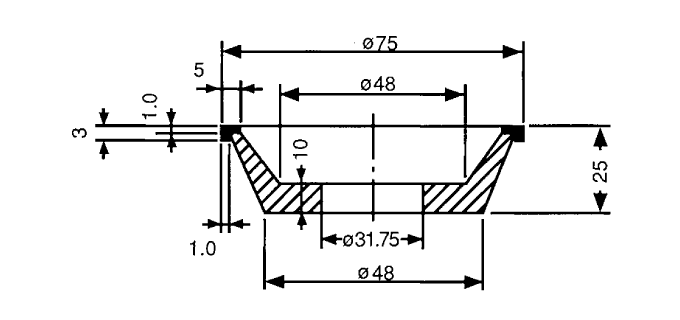

| C2704NIHON SEIMITSU EG-100 | |||||
| Shape | 11C9 | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 75D*5W*3U*1X*31.75H | ||||
 |
|||||

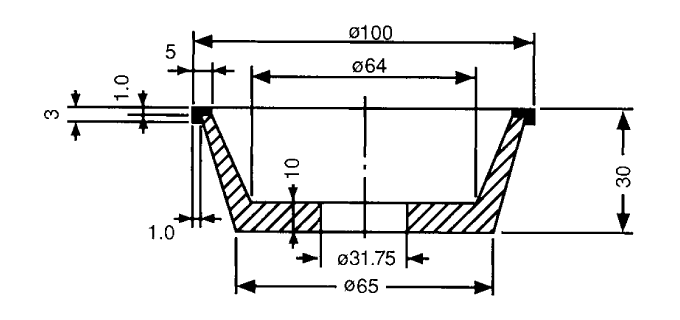

| C2705NIHON SEIMITSU EG-100 | |||||
| Shape | 11C9 | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 100D*5W*3U*1X*31.75H | ||||
 |
|||||

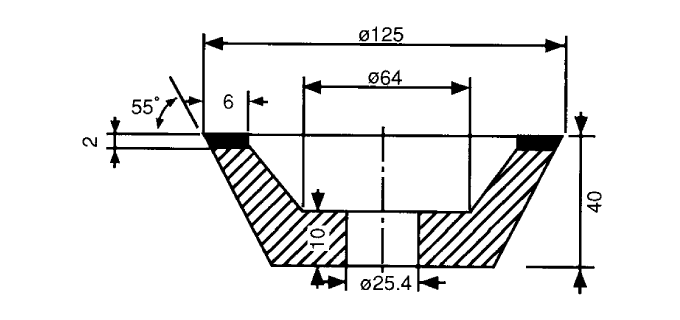

| C2801NIPPON CHOKO AlloyMate | |||||
| Shape | 11B2 | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 125D*6W*2X*55°*25.4H | ||||
 |
|||||

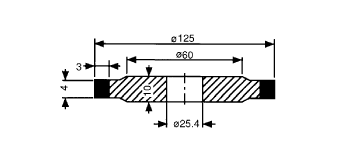

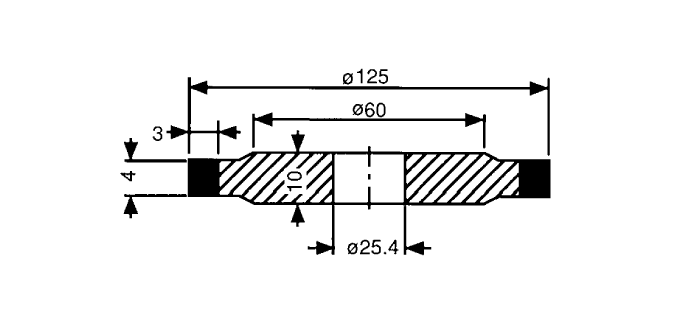

| C2802NIPPON CHOKO AlloyMate | |||||
| Shape | 14A1 | Type | Dry | Other | |
|---|---|---|---|---|---|
| Size | 125D*4U*3X*25.4H | ||||
 |
|||||

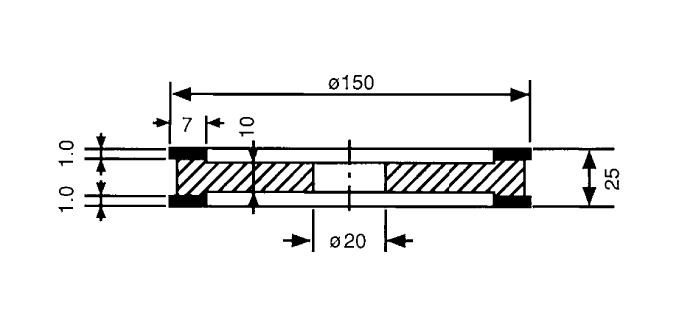

| C2901NOMURA CN-150 | |||||
| Shape | 9A3 | Type | Wet | Other | 25T |
|---|---|---|---|---|---|
| Size | 150D*7W*1X*20H | ||||
 |
|||||
