带轴内砂轮,电解金刚石立方氮化硼工具

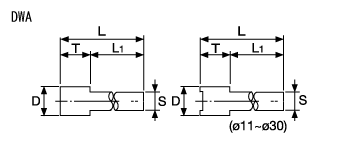

《标准产品》◆金刚石◆立方氮化硼（#140但DWA1.0Ø以下的金刚石粒度均为细腻型）

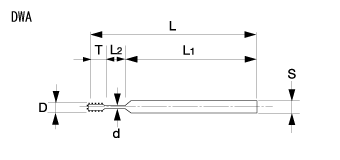

代码NO. D T L2 S L 代码NO. D T L2 S L
AS0030 0.3 2 2 3 50 AS0350 3.5 5   3 50
AS0040 0.4 2 2 3 50 AS0400 4.0 5   3 50
AS0050 0.5 2 2 3 50 AS0450 4.5 5   3 50
AS0060 0.6 3 3 3 50 AS0500 5.0 5   3 50
AS0070 0.7 3 3 3 50 AS0550 5.5 6 14 6 60
AS0075 0.75 3 3 3 50 AS0600 6.0 6 14 6 60
AS0080 0.8 3 3 3 50 AS0650 6.5 7   6 60
AS0090 0.9 3 3 3 50 AS0700 7.0 7   6 60
AS0100 1.0 3 3 3 50 AS0750 7.5 8   6 60
AS0110 1.1 4 7 3 50 AS0800 8.0 8   6 60
AS0120 1.2 4 7 3 50 AS0850
 8.5 9   6 60
AS0125 1.25 4 7 3 50 AS0900 9.0 9   6 60
AS0130 1.3 4 7 3 50 AS0950 9.5 10   6 60
AS0140 1.4 4 7 3 50 AS1000 10 10   6 60
AS0150 1.5 4 7 3 50 AS1100 11 10   10 70
AS0160 1.6 4 7 3 50 AS1200 12 10   10 70
AS0170 1.7 4 7 3 50 AS1300 13 10   10 70
AS0175 1.75 4 7 3 50 AS1400 14 10   10 70
AS0180 1.8 4 7 3 50 AS1500 15 10   10 70
AS0190 1.9 4 7 3 50 AS1600 16 10   10 70
AS0200 2.0 4 7 3 50 AS1700 17 10   10 70
AS0220 2.2 5 7 3 50 AS1800 18 10   10 70
AS0240 2.4 5 7 3 50 AS1900 19 10   10 70
AS0250 2.5 5 7 3 50 AS2000 20 10   10 70
AS0260 2.6 5 7 3 50 AS2500 25 10   10 70
AS0280 2.8 5 7 3 50 AS3000 30 10   10 70
AS0300 3.0 5 10 3 50

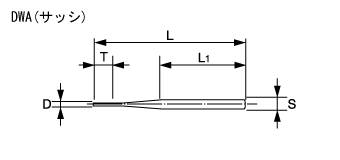

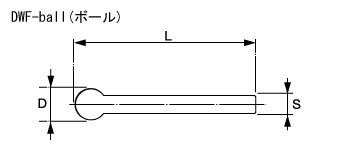

代码NO. D T S L1 L 代码NO. D     S L
AH0503 0.5 7 3 23 45 FB0103 1     3 50
AH0753 0.75 7 3 25 45 FB0203 2     3 50
AH1003 1 7 3 25 45 FB0303 3     3 50
AH1503 1.5 7 3 27 45 FB0403 4     3 50
AH2003 2 7 3 30 45 FB0503 5     3 50
AH2503 2.5 7 3 33 45 FB0606 6     3 50
AH3003 3 7 3 35 45

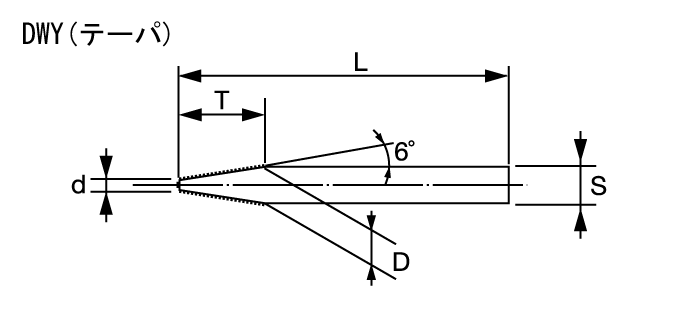

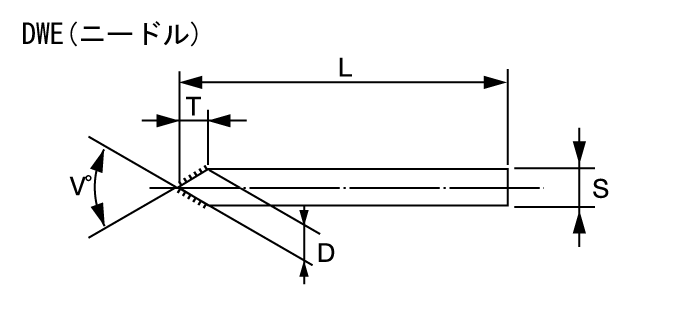

代码NO. D,S L 代码NO. D,S T d L
30° 60° 90°     YT0312 3 12.5 0.4 50
EN0330 EN0360 EN0390 3 50 YT0412 4 13.5 1.2 55
EN0430 EN0460 EN0490 4 50 YT0512 5 14.5 2 60
EN0530 EN0560 EN0590 5 50 YT0612 6 15.5 2.7 65
EN0630 EN0660 EN0690 6 50

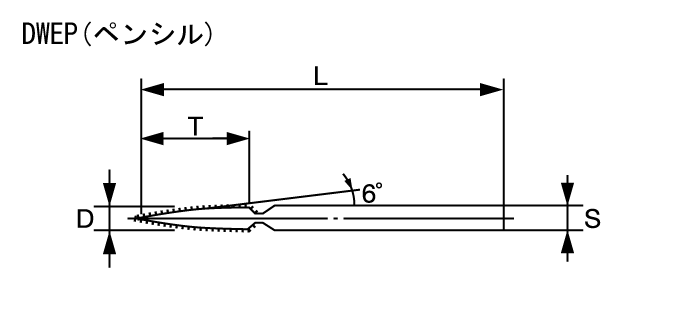

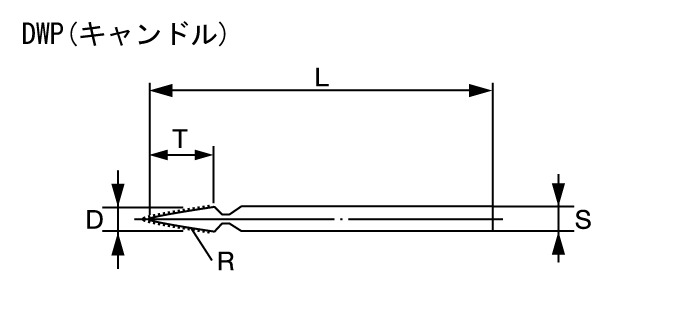

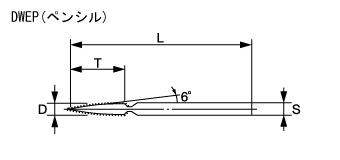

代码NO. D T S L 代码NO. D,S T (R) L
EP0303 3 12.5 3 50 PC0365 3 10.5 65 50
EP0404 4 9 4 60 PC0330 3 7.5 30 48

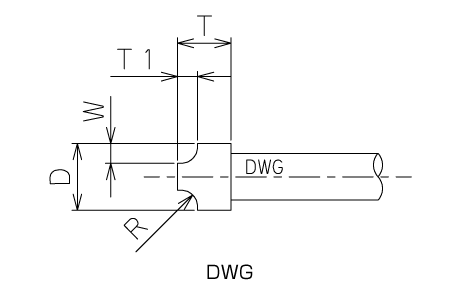

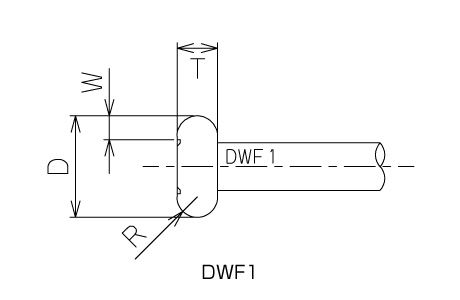

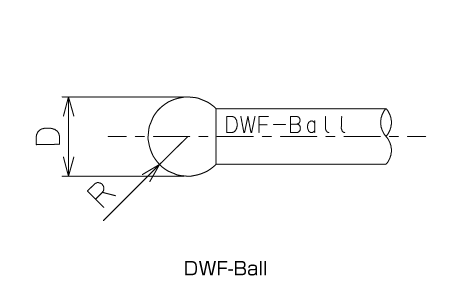

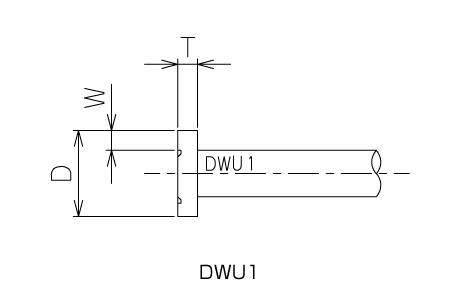

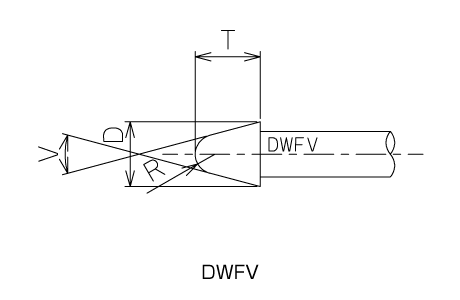

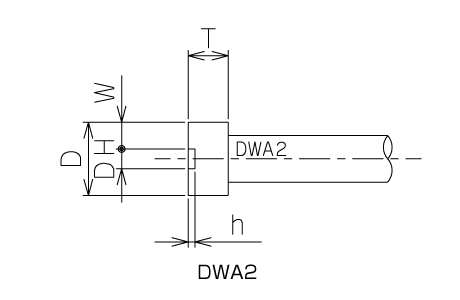

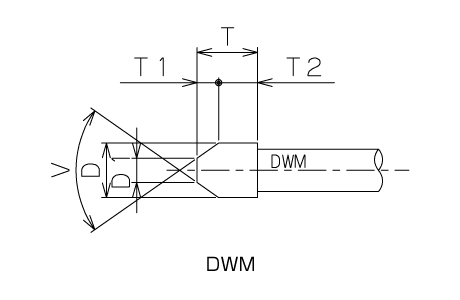

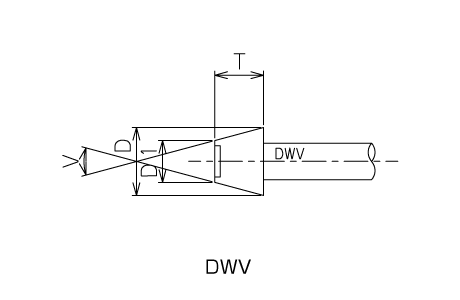

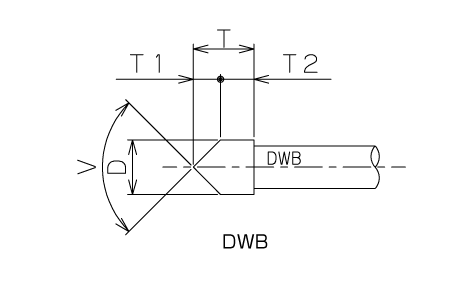

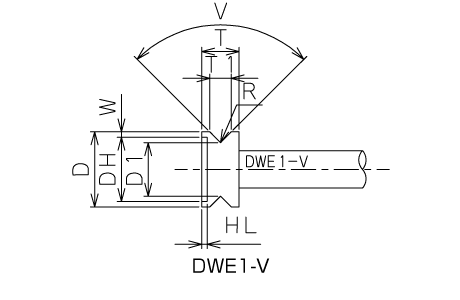

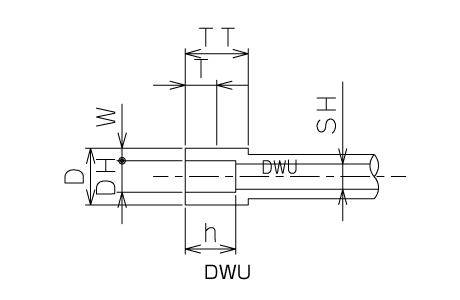

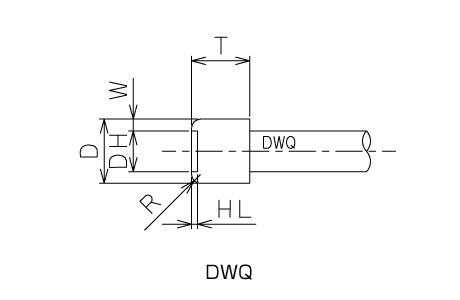

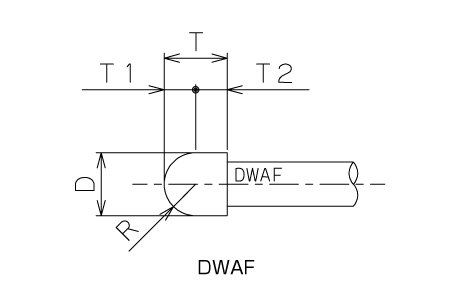

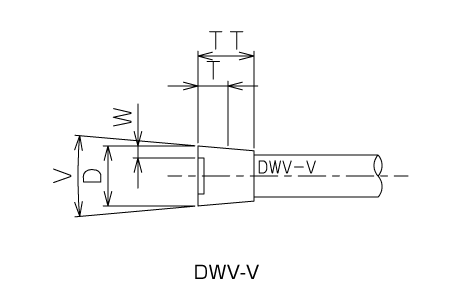

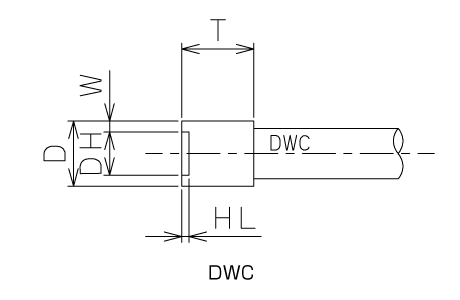

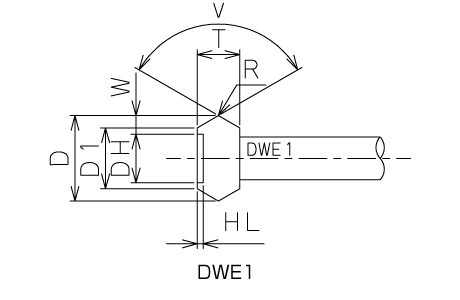

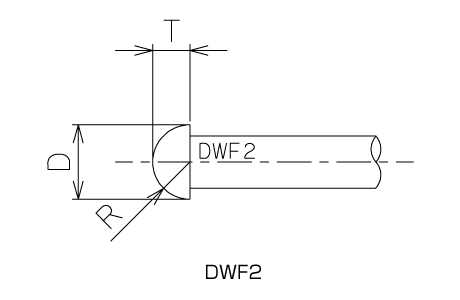

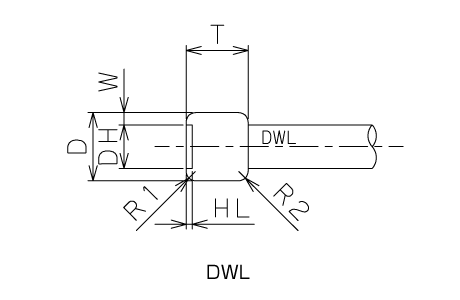

各种制作例
